We are engaged in supplying Power cable Accessories from well-established brand Raychem, Raychem RPG. We offers a comprehensive range of cable accessories for all cable types. The most innovative utilities and industries around the world, including mining, marine, offshore and nuclear, use our power cable accessories. Designed to withstand environmental extremes and high pollution levels over long operating lifetimes, they help maintain service reliability in both overhead and underground installations. We have developed specially formulated insulation materials that resist tracking, erosion and degradation caused by ultraviolet light and other environmental stresses. |
|
|
|
|
|
|
 |
LV Joints & Terminations |
|
|
 |
MV Joints & Terminations |
|
|
 |
HV Joints & Terminations |
|
|
 |
EHV Joints & Terminations |
|
|
 |
Link Boxes |
|
|
 |
Other Cable Accessories & Tools |
|
|
|
LV Joints & Terminations |
Low-voltage joints |
|
Raychem products offer excellent insulating and sealing performance with heat-shrinkable, gel and resin materials. These proven materials form the basis of straight and branch joints for voltages up to 1kV. |
|
 |
Heat-shrink, resin, gel technologies |
 |
Environmentally friendly sealants |
 |
Quick and easy installation |
 |
Re-instatement and energisation immediately after installation |
 |
Solutions for all cable constructions |
 |
Low-voltage joints for safety class cable |
|
|
Rayvolve RVS |
|
Raychem Rayvolve RVS kits are the easy, “roll-on” way to insulate and seal cable connections up to 1kV.
The gripping force of the specially formulated EPDM elastomer combines with a high-performance sealant to form a reliable, water-resistant, insulating sleeve that is UL listed and CSA certified for direct burial applications over in-line compression connectors. In addition, RVS kits are well suited for evaluation in other applications: |
|
 |
Residential junction blocks |
 |
Connections to secondary network protectors |
 |
Joint covers for “Y” connections in street lighting circuits |
 |
Cable connection for overhead bundled cable |
 |
Environmental seals for terminal lugs and insulated airport connectors |
|
|
Four sizes of Rayvolve sleeves cover all common low voltage cable types from #8 AWG-1000 kcmil (10-500 mm2). |
|
Low-voltage terminations |
|
Consistent performance in harsh environments – such as extreme temperatures, atmospheric pollution, and ultraviolet light – has proved the reliability of Raychem terminations. |
|
 |
Heat-shrink technology |
 |
Quick and easy installation |
 |
Solutions for all cable constructions |
|
|
|
|
|
|
MV Joints & Terminations |
Medium-voltage joints |
|
Millions of medium voltage joints have been installed on paper and polymeric cables worldwide, in the most severe service conditions, and under high electrical, thermal, mechanical and environmental stress. The reliability of the technologies is proven. |
|
 |
Heat-shrink and cold-applied technologies |
 |
Prefabricated components |
 |
Quick and easy installation |
 |
Easy and highly reliable installation |
 |
Applicability to different conductor and connecting techniques |
 |
Accommodation of tolerances, range-taking |
 |
Suitable for different conductor cross sections and cable constructions |
 |
Solutions for all cable constructions |
|
|
|
|
|
|
Rayfit -Heat-Shrinkable Joint Sleeve for Medium Voltage Joints up to 33kV |
|
Rayfit represents the new generation of heat-shrinkable jointing technology. It is based on a triple-extruded, heat-shrinkable, elastomeric joint sleeve component. The system is suitable for paper and polymeric cable constructions and is designed to accommodate modern jointing requirements such as mechanical shear bolt connectors. |
|
 |
Triple-extruded body provides a pre-engineered joint unit with fewer kit components |
 |
Advanced shrink behavior and profile-following are combined with a significant reduction in shrink time |
 |
High recovery forces result in tight electrical interfaces and perfect sealing ability |
|
|
|
|
|
 |
Optimized heat transfer due to reduced thermal capacity |
 |
The reduced overall joint diameter provides a slimmer and space saving profile |
 |
As an alternative to crimp connectors, kits can be selected with mechanical shear bolt connectors for conductor and shield continuity |
 |
Unlimited shelf-life simplifies material logistics and reduces cost |
|
|
Medium-voltage terminations |
|
Our medium-voltage terminations have been used by utilities and industrial organizations worldwide for more than four decades. |
|
 |
Heat-shrink and cold applied technologies |
 |
Proven anti-tracking, erosion- and UV- resistant insulating material for indoor and outdoor applications |
 |
Easy and highly reliable installation |
 |
Range-taking |
 |
Suitable for crimp, soldered and mechanical lugs |
 |
Resistant to breakage and vandalism |
 |
Solutions for all cable constructions |
|
|
|
|
|
Uniterm |
|
Heat-shrinkable terminations for indoor & outdoor applications for polymeric cables up to 33kV.
Raychem’s heat-shrinkable terminations have a proven record of stability, durability and reliability over many years. Raychem’s cable accessories have been used by utilities and industrial companies.
Designed for both indoor and outdoor use in all climate conditions, the Uniterm range covers applications for polymeric cables up to 33kV. The components combine to provide the important functions such as electrical performance, stress control and moisture sealing, required for all medium voltage products. |
|
|
|
|
|
 |
No sheds for indoor applications up to 33kV |
 |
High-performance termination material |
 |
New ceramic stress control system |
 |
Compact design |
 |
Few components |
 |
Simple to install |
 |
Mechanical robustnes |
 |
Range takings |
 |
Inexhaustible shelf life |
|
|
|
|
EHV Joints & Terminations |
Extra-High Voltage Outdoor Termination up to 245 kV |
|
The extra-high voltage outdoor termination (OHVT) is designed for voltages up to 245 kV. Polymeric insulated cables of various designs can be adopted with respect to shielding and metal sheath. Composite or porcelain housings with different creepage lengths are available covering the most common and also extreme pollution levels.
The termination is designed according to following standards: IEC-60840, IEC-62067, IEC-60815, IEEE-48 & IEEE-1313 |
|
Dry Self-Supporting Outdoor Termination for 145kV |
|
Raychem’s dry self-supporting termination is designed for voltage class 145kV. It is free from any insulating liquid or gel. Polymeric insulated cables of various designs can be adopted with respect to shielding and metal sheath.
The polymeric housing with long creepage length is operational under severe environmental conditions according to IEC 60071-1 1996, IEC 60071-2 1996, and IEEE-1313.1-1996. |
|
 |
Dry interface, no oil-filling |
 |
Self-supporting |
|
|
|
|
|
 |
Pre-fabricated and factory tested silicone-rubber stress cone |
 |
Torque-controlled multi-contact conductor bolt |
 |
Fast and simple installation combining GIS plug-in technology with polymeric insulators |
 |
Isolated cable gland for sectionalisation |
 |
Type tested according to IEC 60840 |
|
|
|
Extra-High Voltage Joints up to 245kV |
|
The joint is a pre-fabricated one-piece design for voltage classes up to 245 kV. Polymeric insulated cables of various designs can be adapted with respect to shielding and metal sheath. The silicone rubber joint body with integrated geometrical stress control provides proven electrical function. The joint components combine electrical performance, stress control and moisture sealing to provide the important functions required for all High Voltage products. |
|
|
|
|
 |
Pre-moulded one piece joint body |
 |
Proven shield continuity concept |
 |
Factory tested silicone-rubber body |
 |
Special silicone-rubber provides perfect compression force for optimised electrical performance |
 |
Simple assembly |
 |
Moulded thick outer conductive screen |
 |
Geometrical electrical stress control by moulded conductive deflectors |
The joint is designed according to following standards: |
Type tested according to IEC60840, IEC 62067, IEEE404 & GB11017 |
Manufactured according to ISO9001 and ISO14001 |
|
|

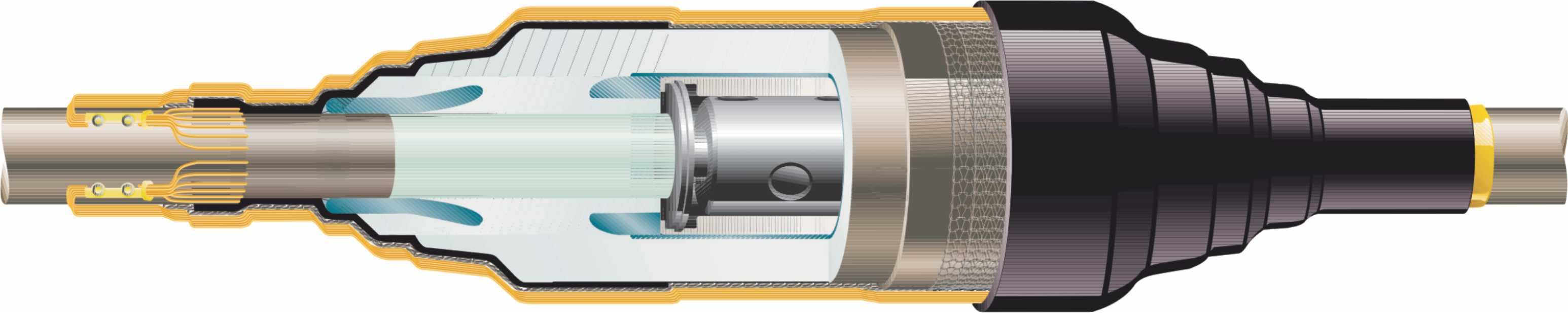

EHVS – Inline and Shield Break Splice from 123kV up to 170kV |
|
 |
|
EHVS joint is a pre-fabricated three-piece design for voltage classes up to 170kV. Polymer insulated cables of various designs can be adopted with respect to shielding and metal sheath. Cross-section up to 250 mm2 is applicable |
|
 |
Pre-fabricated three-piece splice design |
 |
Using torque-controlled conductor sleeves |
 |
Short cut-back dimensions |
 |
Integrated moisture barrier using H/S components |
 |
Can adapt shield-break application |
 |
Pre-fabricated and tested Si-rubber |
 |
Type tested according to IEC 60840 and IEEE 404 standards |
|
|
EHV Dry Compact Switchgear & Transformer Termination PHVS & PHVT for 72 kV, 145 kV and 245 kV |
|
The dry compact switchgear termination for voltage classes up to 245 kV is designed to be installed in cable entry housings of gas-insulated switchgear (GIS). It complies with IEC 62271-209 standard, which essentially specifies the interfaces between the termination and the switchgear. Therefore the termination will fit into all GIS complying with IEC 62271-209. Adapters are available to match the dimensions of wet (oil-filled) type terminations, and older designs specified in IEC 60859. The termination operates in SF6 but also in insulating liquids like transformer oil. |
|
|
|
|
 |
Dry interfaces, no oil-filling |
 |
Dimensions comply with IEC 62271-209 |
 |
Pressure-tight resin housing |
 |
Operates in SF6 and insulating liquids |
 |
Pre-fabricated and factory tested Si-rubber stress cone |
 |
Torque controlled or wedge-type multi-contact conductor bolt |
 |
No special tools required to install the termination |
 |
Isolated cable gland for sectionalisation |
 |
Type tested according to IEC 60840, IEC 62067 and IEC 62271-209 standards |
|
|
Link Boxes |
|
Link boxes are used with cable joints and terminations to provide easy access to shield breaks for test purposes and to limit voltage building up on the sheath. Lightning, fault currents and switching operations can cause over voltages on the cable sheath. The link box optimizes loss management in the cable shield on cables grounded from both sides. |
|
 |
Compact design |
 |
Stainless steel |
 |
1-phase and 3-phase boxes |
 |
Sheath voltage limiters (SVL) |
|
|
|
 |
|
 |
|
 |
Grounding box |
|
Link box with Sheath
Voltage Limiters(SVL) |
|
Link box with Cross
Bonding Cables |
|
|
Other Cable Accessories & Tools |
|
Accessories for Nuclear Environments |
|
Raychem has developed a series of heat-shrinkable components and kits to help seal and insulate electrical connections in nuclear power plants. Made of heavy-wall, flame retardant, cross-linked polyolefin and pre-coated with a nuclear grade adhesive, these products are designed to withstand radiation levels and temperatures attainable inside nuclear stations’ containment buildings. |
|
Raychem nuclear power products are designed specifically to satisfy the requirements of protecting many of the 200.000 connections made in the construction of these plants. Raychem nuclear accessories have been subjected to very stringent LOCA/HELB tests to verify their performance capability in hypothetical nuclear accident scenarios. |
|
|
|
|
|
|
|
Cable Repair Sleeves |
|
Heat-shrinkable wraparound sleeves are a fast, versatile and permanent method of repair for damaged cable outer sheaths. Upon application of heat, the sleeve shrinks and adhesive melts and bonds to the cable sheath, creating a permanent seal against moisture entry into the cable. Wraparound sleeves are useful for repairs to cable outer sheath where it is not possible to use tubular sleeves. |
|
|
 |
|
|
Stripping Tool |
|
Stripping tool for extruded and bonded cable screens and primary insulation for cable diameters from 35 to 90 mm. |
|
|
 |
|
|
High Voltage Installation Tool Box |
|
The High Voltage Installation Tool Box includes all necessary tools for installing Raychem HV cable accessories up to 145kV. |
|
With this comprehensive range of tools you will always find the right tool for the job. From simple standard tools to special high voltage tools, the installation tool box offers outstanding quality for a fast and reliable installation. All tools are field tested and chosen by skilled installers. |
|
|
 |
|
|
Other Tools |
|
 |
 |
 |
 |
Cable End Caps |
Cable Entry Glands |
Cable Cutting Tools |
Cable Spiker Tools |
|
|
|
|
|
ZCSM – Heat-Shrinkable Heavy-Wall Tubing for Low Fire Hazard Areas |
|
This new low fire hazard material has been developed using the latest polymer technology to provide low smoke, low toxicity and low acid gas generation while being highly flame retardant and having a low calorific value. |
|
 |
ZCSM tubing is halogen-free and flame-retardant. A range of established tests, such as flame propagation tests, limiting oxygen index and temperature index have been carried out to assess the flame retardation properties of this material |
|
 |
Corrosion damage depends on the amount of acid gases generated when a material is burned, and therefore on the level of halogens and other acidic components in the insulation material. Pyrolytic analyses show only trace quantities of these substances in the ZCSM tubing. The low toxicity index rating derived from measurements of these and further Combustion products provide additional evidence of the material’s suitability for meeting special requirements of this kind |
|
|
|
|
|
|
|
|
